Armoured Profibus DP Cable
(Belden 3079A Equivalent+SWA+PVC Sheath)

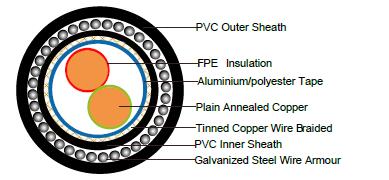

Construction:
Pair No. X Conductor Size |
1PX22AWG |
|---|---|
Conductor |
Solid plain copper |
Insulation |
FPE |
Shielding 1 |
Aluminium foil |
Shielding 2 |
Tinned copper wire braid – 65% coverage |
Inner Sheath |
PVC, Color: Purple |
Amour |
Galvanised steel wire |
Outer Sheath |
PVC |
Overall Diameter |
13.6mm |
Approx. Weight |
304 KG/KM |
Core Color |
Red&Green |
Outer Sheath Color |
Black |
Electrical Data:
Characteristic Impedance @ 3-20MHz |
150 Ω ± 15Ω |
|
|---|---|---|
Conductor Resistance |
52.5 Ohm/km max. |
|
Test Voltage |
1KV |
|
Operate Voltage |
300V RMS |
|
Mutual capacitance |
27.9 pF/m |
|
Max. Attenuation |
0.2MHz |
1.1dB/100m |
4MHz |
2.65dB/100m |
|
16MHz |
5.4dB/100m |
|
Technical Data:
Min. Bending Radius |
6 x OD mm |
|---|---|
Operating Temp.Range, min. |
-30 °C |
Operating Temp.Range, max. |
+75 °C |
Fire Performance
flame Retardance (single vertical wire or cable test) Iec 60332-1-2; en 60332-1-2
